4-5 Operators

MONOLITHIC E-STOP PUSH PULL + UP-DOWN + COMMON + NORMAL INSPECTION SWITCH

Enquire

E-STOP

1NC

UP

1NO

DOWN

1NO

COMMON

1NC+1NO

SWITCH

2NC+ 2NO

PART NUMBER

B4MA001

DIMENSIONS

MONOLITHIC E-STOP PUSH PULL + UP-DOWN + ALARM-COMMON + NORMAL INSPECTION SWITCH

Enquire

E-STOP

1NC

UP

1NO

DOWN

1NO

COMMON

1NO

SWITCH

2NC+ 2NO

PART NUMBER

B4MA002

DIMENSIONS

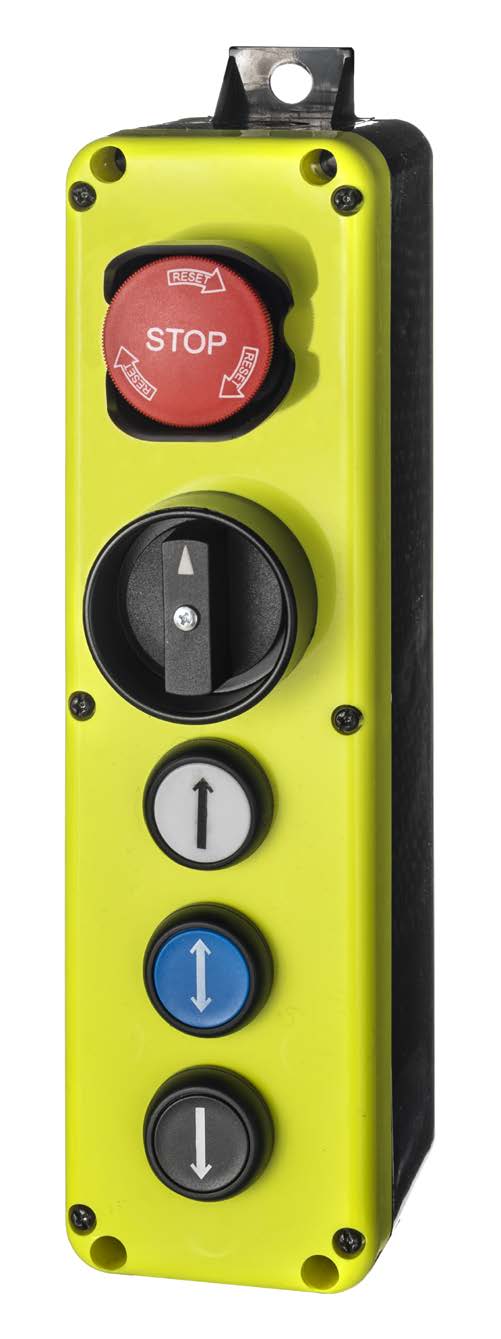

MONOLITHIC E-STOP PUSH PULL + UP + DOWN + NORMAL INSPECTION SWITCH

Enquire

E-STOP

2NC

UP

2NO

DOWN

2NO

SWITCH

3NC+ 1NO

PART NUMBER

B4MA003

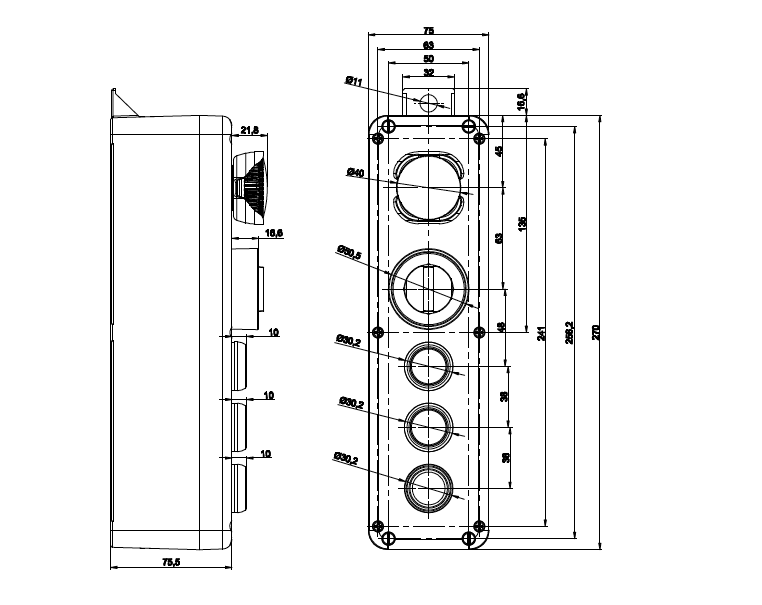

DIMENSIONS

MONOLITHIC E-STOP TWIST TO RELEASE + NORMAL INSPECTION SWITCH + UP + COMMON + DOWN

Enquire

E-STOP

2NC

SWITCH

3NC+ 1NO

UP

2NO

COMMON

1NC+1NO

DOWN

2NO

PART NUMBER

B5MA001

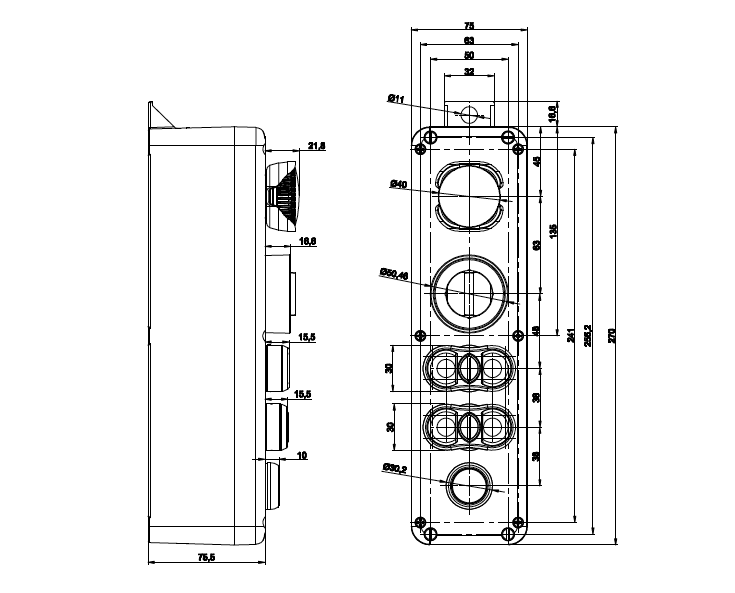

DIMENSIONS

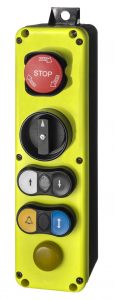

MONOLITHIC E-STOP TWIST TO RELEASE + NORMAL INSPECTION SWITCH + UP + LIGHT + COMMON + DOWN

Enquire

E-STOP

2NC

SWITCH

3NC+ 1NO

UP

2NO

COMMON

1NO

DOWN

2NO

LED INT

10 Lumen

PART NUMBER

B5MA002

DIMENSIONS

E-STOP PUSH PULL VISION + NORMAL INSPECTION SWITCH + UP + COMMON + DOWN

Enquire

E-STOP

2NC

SWITCH

2NC+ 2NO

UP

2NO

COMMON

1NC+1NO

DOWN

2NO

PART NUMBER

B5OA001

DIMENSIONS

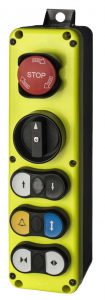

MONOLITHIC E-STOP TWIST TO RELEASE + NORMAL INSPECTION SWITCH + UP + COMMON + DOWN

Enquire

E-STOP

2NC

SWITCH

3NC+ 3NO

UP

2NO

COMMON

1NO

DOWN

2NO

ALARM

1NO

DOOR CLOSE

1NO

DOOR OPEN

1NO

PART NUMBER

B5MA003

DIMENSIONS
